Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Note: Accessories may vary depending on the model purchased. Please refer to the product packaging to find out which accessories are included with your product.
- Protection cap
- Blade
- OneBlade handle
- Beard comb 1mm (3/64in)
- Beard comb 3mm (1/8in)
- Beard comb 5mm (13/64)
- USB charging cable
- Note: Philips IPX4 (splash-proof) USB power adapters are available for purchase separately.
- Body comb 3mm (1/8in)
- Skin guard
- Body blade
Only use the product for its intended household purpose. Read this important information carefully before you use the product and its batteries and accessories, and save it for future reference. Misuse can lead to hazards or serious injuries. The accessories supplied may vary for different products.
Charging OneBlade
When the battery is low, the motor will run more slowly.
-

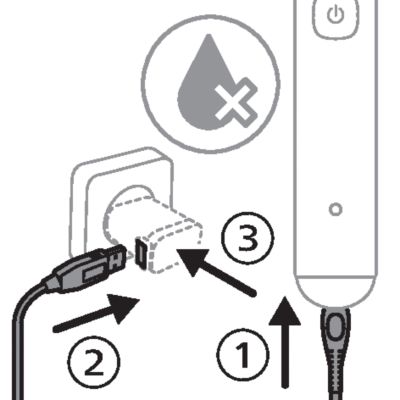

- Insert the small plug into the OneBlade handle, then insert the USB plug into a USB power source (not included).
- To fully charge the battery, allow it to charge for 8 hours. The charging indicator will remain illuminated when the product is connected to the power source.
- Unplug the adapter from the power source, then remove the charging cable from the handle.
- Note: for safety reasons, the product can only be used when the charging cable is not attached.
- A fully charged OneBlade has an operating time of at least 30 minutes.
Turning OneBlade on and off

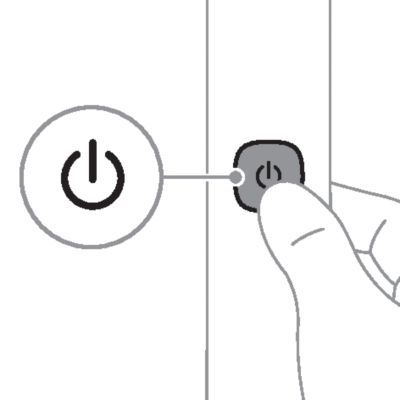

To turn the product on or off, simply press the power button once.
Tip: If the product does not turn on, check that the battery is fully charged and remove the charging cable from the handle before pressing the power button. If the product still does not turn on, check that the blade is clean and undamaged.
Shaving facial hair
To shave with OneBlade, remove any combs or guards. Your OneBlade is waterproof, so you can shave in the shower or with foam or gel.
-
-
- To shave, make long, slow and steady strokes, applying gentle pressure with the blade flat against your skin. Move the blade back and forth to make use of both sides of the blade.
-
-
- To edge or contour your beard, mustache or sideburns, make short strokes with the blade held perpendicular to your skin. Alternatively, make small strokes with the blade flat against your skin.
- For best results, clean your OneBlade after each use.
Trimming
Some OneBlade models include single-length beard combs for trimming facial hair. The numbers on the combs relate to the hair length remaining after trimming (in millimeters).
Tip: if you are unsure which length you prefer, start with the longest guard available and reduce the length further if necessary.
-

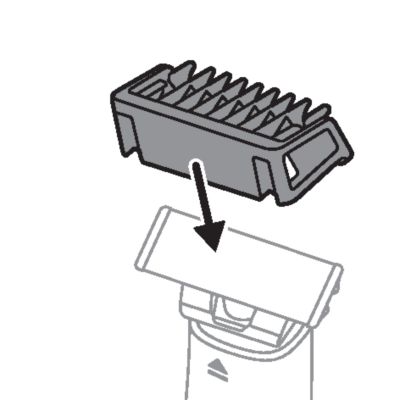

- Hook the back of the comb (the side with the number on it) under the bottom of the blade, then gently press on the front of the comb until it clicks into place.
-
-

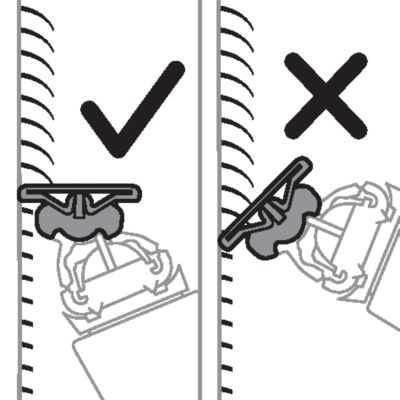

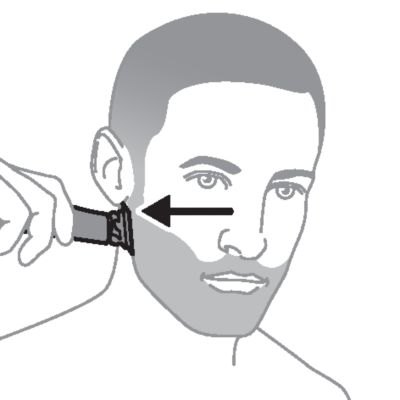

- Trim against the direction of hair growth, with the teeth of the comb flat against your skin.
-

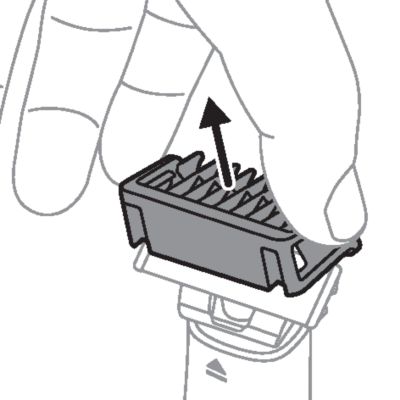

- To detach the comb, hold the handle firmly and gently lift the comb off the blade.
- For best results, clean your OneBlade after each use.
Shaving body hair
Areas including your chest, stomach and legs can be in the same way as shaving your face.
Note: to minimize the risk of cuts always use the skin guard when trimming sensitive areas. This includes when shaving your armpits or groin (including scrotum).
-
- If you are using the skin guard, place it onto the blade and gently press until it clicks into place.
- Switch on your OneBlade, and place the blade flat against your skin.
-
- Make long, steady strokes, exerting gentle pressure and allowing the blade to glide across the surface of your skin.
- Tip: on certain areas, using the fingers of your free hand to spread the skin and hold it taut will provide better results.
- The blade and skin guard are double sided. Move the blade back and forth to catch hairs growing in different directions.
-
- Clean your OneBlade after each use. If you used the skin guard, press your thumb onto the exposed flat surface of the blade, and use your fingers to gently pull off the skin guard before cleaning.
Trimming body hair
Some OneBlade models come with a 3mm (1/8inch) body comb that allows you to trim hair on your body below the neckline (for example chest, armpits and groin).
For hygiene reasons, we recommend using the separate body blade provided when trimming body hair.
Note: For delicate areas such as the groin, only trim when a comb is attached.
-
- Place the comb onto the blade and gently press until it clicks into place.
-
- Trim against the direction of hair growth, with the teeth of the comb flat against your skin. The guard is double sided, so you can move your OneBlade back and forth to cut hairs growing in different directions.
- To detach the comb, hold the handle firmly and gently lift the guard off the blade. For best results, clean your OneBlade after each use.
Cleaning OneBlade
-

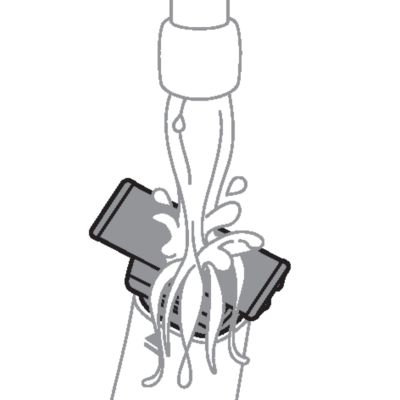

- Turn on your OneBlade and rinse it under the tap with cold or lukewarm water. If you shave with foam or gel, be sure to remove all residue after each shave.
- Rinse any combs
- Combs and other accessories can also be cleaned under the tap using lukewarm water.
- Allow to air dry
- Allow your OneBlade and accessories to air dry completely before storage.

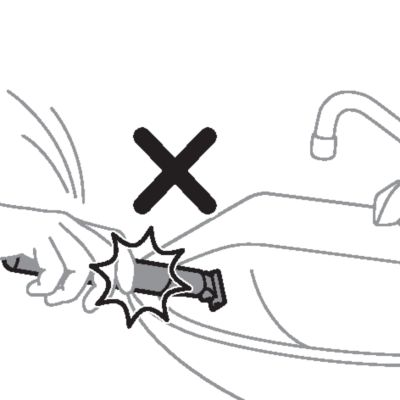

Note: Do not bang the handle on the sink or any hard surface, a this may damage the product. Do not use a towel or cloth to dry the blade.
Storage
Store your OneBlade in a safe, dry location where it will not be crushed, banged, or subject to damage. To protect the blade, store the product with the protection cap attached. Do not wrap the cable around the product when storing, and do not place or store the product where it can fall or be pulled into a tub or sink, water or other liquid while plugged in.
When to replace the blade
For optimal cutting and gliding performance, we advise you to replace the blade every 4 months or when it no longer provides the shaving or trimming results you expect. Depending on your usage behavior, the exact lifetime of the blade could be longer or shorter.
Wear indicator
A replacement symbol will gradually appear on the blade as you use it. When the replacement symbol is fully visible, it's recommended to replace your blade.
Note that accessories such as guards can prevent the replacement symbol from becoming visible.
Tip: the replacement symbol resembles the arrow icon on the handle of your OneBlade. For older blades, a green rectangle may appear in place of the replacement symbol.
If blade is damaged
If you notice any damage on your blade, please replace it immediately.
How to replace the blade
Before you begin, make sure your OneBlade is turned off and any guards are removed.
-

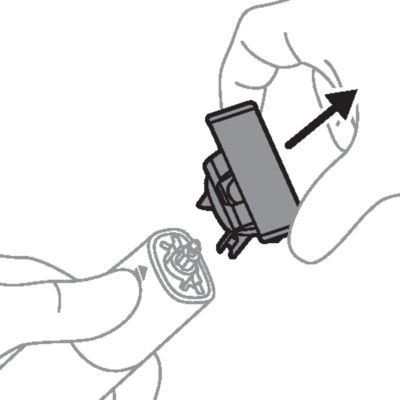

- Gently pull off the old blade, holding it by both short sides.
- The old blade can be discarded with your normal household waste.
- Remove your replacement blade from the packaging. To avoid damaging the blade, don't use sharp objects or crush the packaging.
-

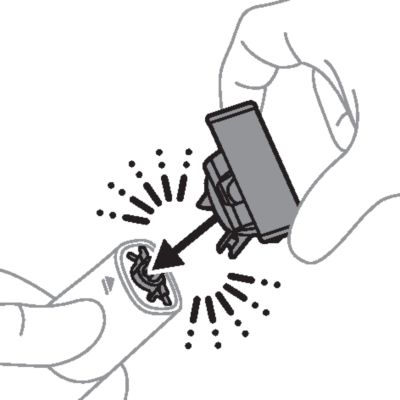

- Hold the new blade by both short sides and insert the protrusions on the bottom of the blade into the slots on the OneBlade handle.
- Gently press the blade downwards onto the handle until it clicks into place.
- Your OneBlade is now ready to use.
To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or visit a Philips dealer. You can also contact Philips Consumer Care at https://www.philips.com/contact for support.
If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.
Warranty restrictions
Cutting units are not covered by the terms of the international warranty because they are subject to wear.
- This symbol means that electrical products and batteries shall not be disposed of with normal household waste.
- Follow your country’s rules for the separate collection of electrical products and batteries.
The built-in rechargeable battery must only be removed by a qualified professional when the appliance is discarded. Before removing the battery, make sure that the appliance is disconnected from the wall socket and that the battery is completely empty.
Take any necessary safety precautions when you handle tools to open the appliance and when you dispose of the rechargeable battery.
When you handle batteries, make sure that your hands, the product and the batteries are dry.
To avoid accidental short-circuiting of batteries after removal, do not let battery terminals come into contact with metal objects (e.g. coins, hairpins, rings). Do not wrap batteries in aluminum foil. Tape battery terminals or put batteries in a plastic bag before you discard them.
- Check if there are screws in the back or front of the appliance. If so, remove them.
- Remove the back and/or front panel of the appliance with a screwdriver. If necessary, also remove additional screws and/or parts until you see the printed circuit board with the rechargeable battery.
- Remove the rechargeable battery.
